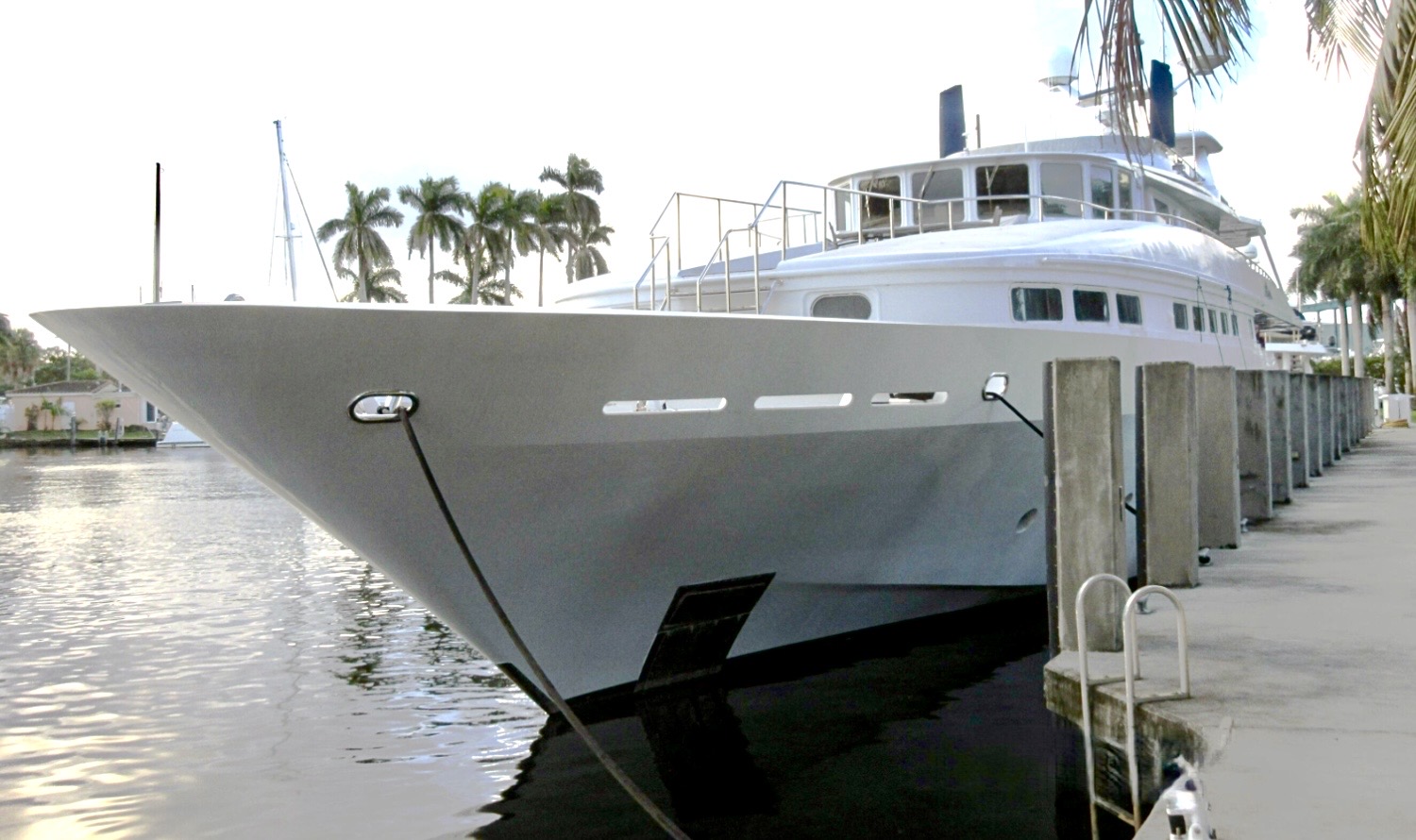

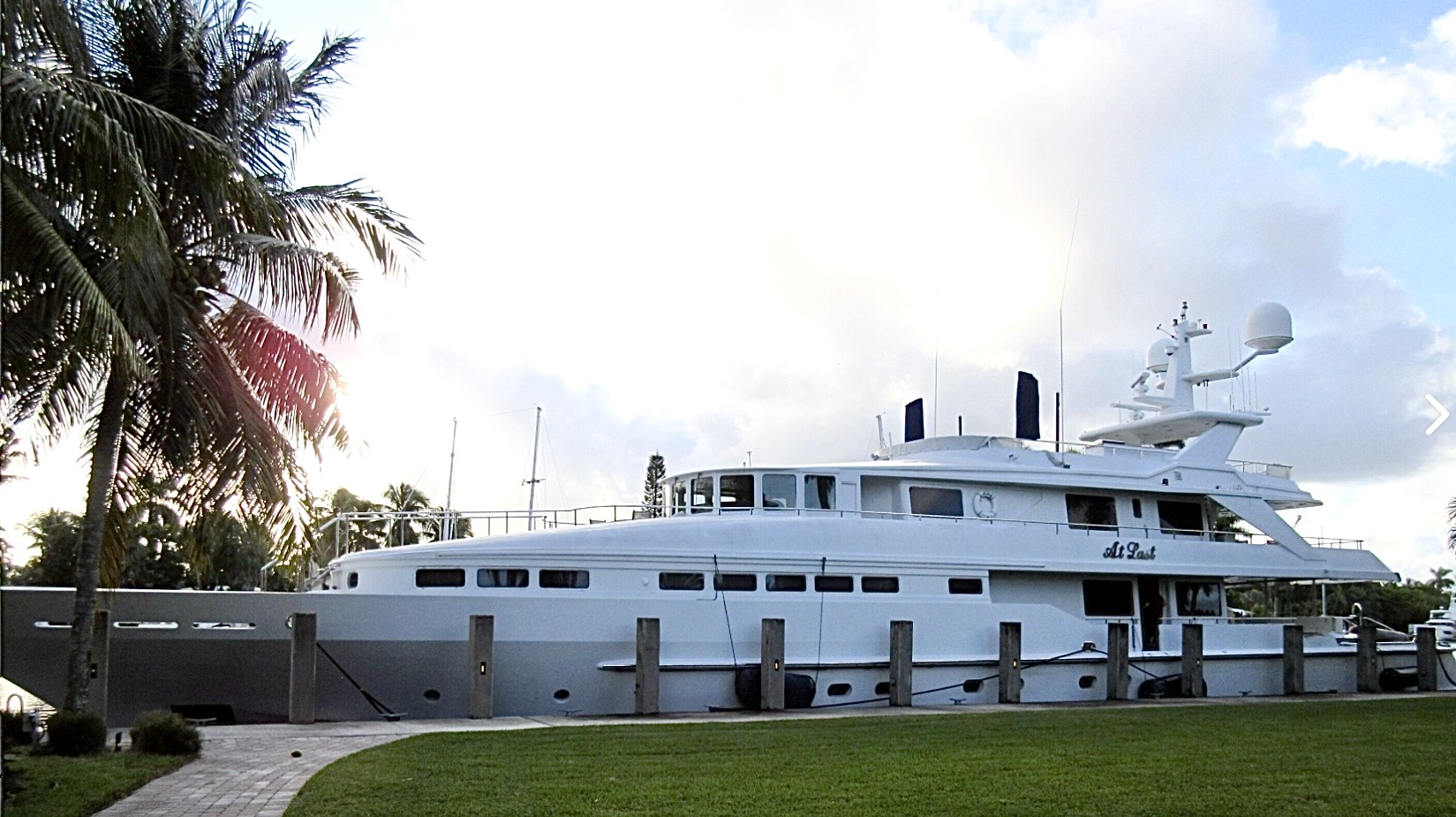

Heesen Yachts Motor Yacht

Vessel Details:

Make: Heesen

Model: 144

Year: 1990

Vessel Type: Motor Yacht

Accomodations:

Number of Berths / Staterooms: 5

Number Of Heads: 8

Specifications:

Vessel Length (Ft): 144' / 43.9m

Draft: 7' / 2.1 m

Beam: 27' 2" / 8.3 m

Draft: 6'10" / 2 m

Weight: 875839 lb / 397273 kgs

Fuel : 73436 L / 19400 gal.

Water :15614 L / 4125 gal.

Waste : 1612 L / 426 gal.

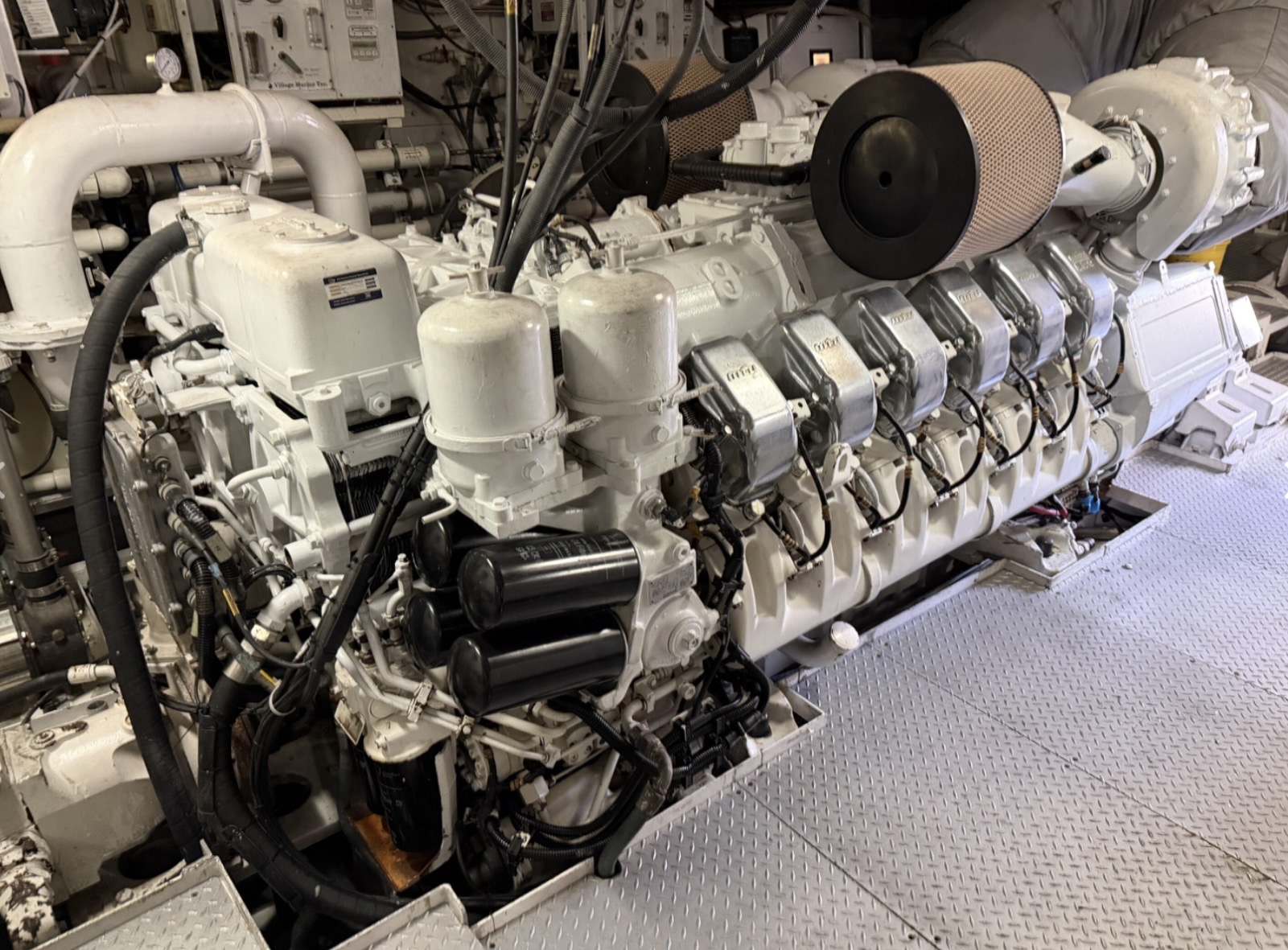

Engines:

Engine Make: MTU

Engine Model: 12V4000 M90

Engine Type: Inboard

Drive Type: Jet Drive

Engine Fuel Type: Diesel

Total Engine(s) Twin

Engine Year: 2007

Engine Horsepower: 2736

Generator:

Generator Make: Onan

Generator Model: MDDCE-5857192

Generators On Board (total): twin

Vessel Options:

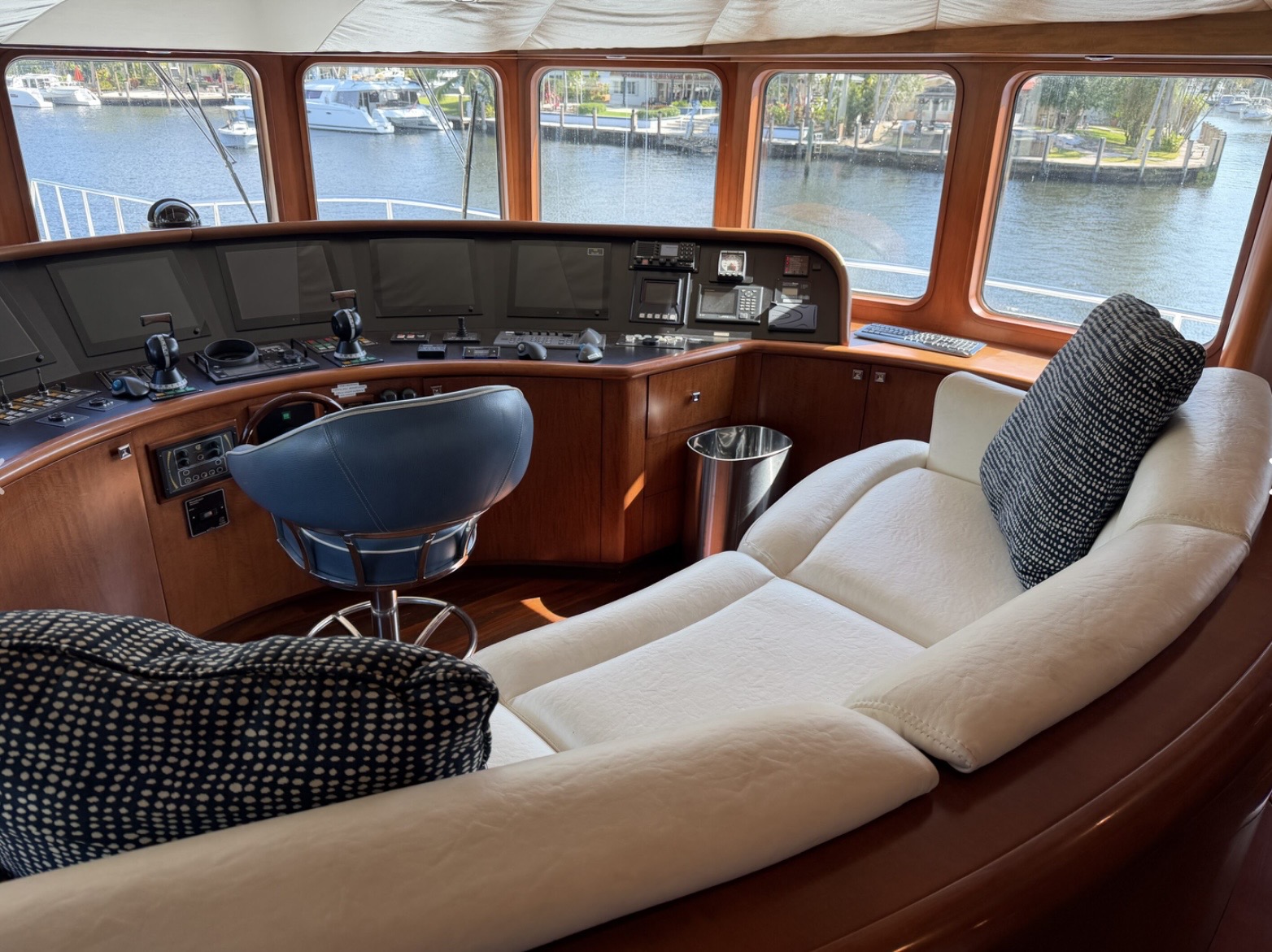

Pilothouse & Office:

Autopilot - Sperry Navipilot

GPS - Garmin GPSMAP 741xs

GPS - Furuno GP-170

GPS - Furuno GP39

Monitors - Six x Hatteland

Chart Plotter - Integrated in above Garmin GPS & networked through monitors via ship's computers

Radar - Two x Furuno 120-mile

Fish Finder - Nobeltec Insight Sonar

Depth Finder - In chartplotters and Furuno RD30 MFDs

Speed Log - In GPSs, chartplotters and Furuno RD30 MFDs

Seawater Temp. - Furuno RD30 MFDs

Wind Gauge - Furuno FI-50 & B&G gauges in office

VHF Radio - Two x Sailor 6222 VHF DSC

Navtex - Furuno NX-70

Inmarsat - Furuno Felcom 15 Sat-C messaging terminal

BNWAS - Netlogic

Entertainment Electronics:

Satellite TV System - Intellian w/ DirecTV receivers

TV/DVD/Media Player - Samsung TV on powered lift in main salon

TV/DVD/Media Player - Samsung TV w/ Apple TV & Sony Blu-ray in master stateroom

TV/DVD/Media Player - Vizio TV w/ Sony Blu-ray in starboard forward guest

TV/DVD/Media Player - LG TV w/ Sony Blu-ray & Xbox in port & starboard aft cabins

TV/DVD/Media Player - Samsung TV in port forward stateroom

TV/DVD/Media Player - TV on powered lift & Samsung Blu-ray in skylounge

TV/DVD/Media Player - Samsung TV in crew mess

TV/DVD/Media Player - TCL TV in captain's cabin

TV/DVD/Media Player - Vizio TV in port forward crew cabin

Sound Systems - Eight x Denon AV receivers throughout vessel

Sound Systems - Fusion stereo on sundeck

Control System - 4-networked system w/ control panels throughout

Onboard Internet - Pepwave cellular receiver/router

Onboard Internet - Sea Tel Cobham VSAT

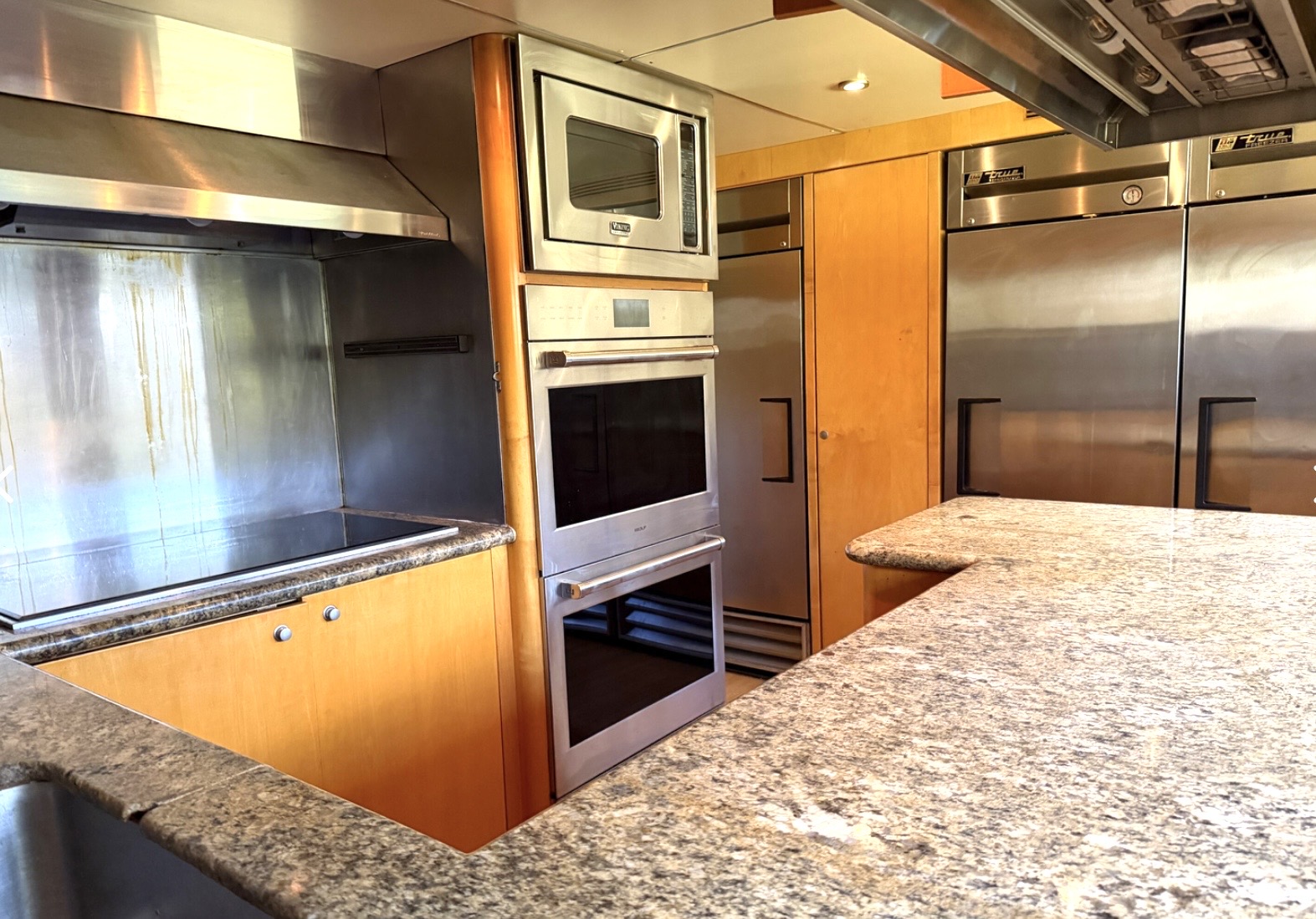

Galley & Domestic Equipment:

Stovetop - Five-burner Wolf induction top

Oven - Wolf

Microwave - Oyster in crew mess

Ventilation - Powered extraction hood above galley stovetop

Dishwasher - Electrolux

Galley Refrigeration - Two x custom stainless-steel units

Galley Freezer - Custom stainless-steel

Icemaker - Ice-O-Matic in main deck pantry

Icemaker - Ice-O-Matic in lazarette

Icemaker - Manitowoc in skylounge

Icemaker - Hoshizaki on sundeck

Other Refrigeration - Sub-Zero fridge in skylounge

Other Refrigeration - U-Line wine chiller in salon

Other Refrigeration - Marvel wine chiller in laundry

Other Refrigeration - Two x Sub-Zero refrigerated drawers in guest foyer

Other Refrigeration - Frigidaire fridge w/ freezer compartment in lazarette

Other Refrigeration - Large Sub-Zero fridge in laundry

Other Refrigeration - Large Sub-Zero freezer in laundry

Other Refrigeration - U-Line fridge/freezer on sundeck

Other Refrigeration - Upright fridge/freezer in crew lounge

Washer/Dryer - Two x LG washers & two x Miele dryers in laundry

Washer/Dryer - Electrolux washer & Miele dryer in crew area

BBQ - DCS by Fisher & Paykel

Deck Equipment:

Gangway - Custom carbon fiber

Dinghy Davit - Two x gantry cranes built into aft deck overhead

Swim Ladder - Removable aluminum ladder stowed on aft deck

Service Air Compressor - Two x Speedaire, 2 HP / 30 volt / 150 PSI

Compressed Air Receivers - 100-liter & 50-liter tanks in engine room

Ground Tackle & Mooring Equipment:

Anchor Windlass - Two x Steen, horizontal, electric

Anchors - Two x stainless-steel navy stockless type

Anchor Rode - Two x 425´ lengths of galvanized steel chain

Cutaway bitter end installed correctly

Deck Capstans - Two x Steen, electric, on aft deck

HVAC / Air Conditioning System

System Make - Domestic

Chiller/Compressor Location - Three chillers in engine room

Air Handlers/Blowers - Units installed throughout vessel

Cooling Capacity - 360,000 BTU

Seawater Pumps - Two x Baldor / Scot pumps, 230 volt

Circulating Pump - Two x Century, 230 volt

Self-Contained System Pump - One x Marathon Electric / March pump, 240 volt

Fresh Air Make-Up Systems - Two x Cuge Marine

Thrusters - Stabilizers - Steering - Trim Tabs - Hydraulics

Bow Thruster - Quantum, hydraulic, 150 HP

Stabilization - Naiad/Quantum hydraulic fin-type 404 stabilizers

At Rest Function - Zero speed function

Steering System - Kamewa

Steering Reservoir - Two x Kamewa, 208 volt pumps w/ 20-gallon reservoirs

Steering Stations - Three (main helm & wing stations)

Hydraulic Pump (PTO) - Off both main engines for stabilizer/thruster

Hydraulic Pump (PTO) - Off both transmissions for stabilizer/thruster

HPU & Reservoir - WEG / Quantum, 208 volt / 10-gallon, for stabilizer system

Hydraulic Reservoir - Quantum, 30-gallon, for bow thruster

Decks, Bilges & Superstructure:

Stem - Raked & flared

Stern - Aluminum, flat

Frames - Aluminum grid system at 1200 mm spacing

Stringers - Aluminum grid system

Bulkheads - Aluminum plate welded to hull and deck

Seacock/Valve Type - Insulated butterfly valves

Decks - Aluminum with teak overlay

Hull-Deck Joint - Welded

Deck Fittings - Aluminum & stainless steel

Topsides - Aluminum, white w/ black boot stripe

Superstructure - Aluminum, white

Bow Arrangement - Twin stainless steel hawse

Rub Rails - Welded aluminum with stainless steel inserts

The price of $AUD 3.75 Mil is fully landed in Newcastle NSW inclusive of Shipping Duty and GST

Contact Premier Yachting on 1800 270 718 for further information today.

Specifications:

Retail Price	$3,750,000
Length	144' / 43.9m
Beam	Beam: 27' 2" / 8.3 m
Draft	7' / 2.1 m
Year Manufactured	1990
Engine	2 x MTU 2V4000 M90 / Inboard Jet Drive / Diesel / 2007/ 2736HP
Cabin
Fuel Capacity	73436 L / 19400 gal.
Water Capacity	15614 L / 4125 gal.
Berths
Extra Features
